The Power of Surface Tools in Onshape – Black Panther Mask

Surface design is quite overwhelming in Onshape or other CAD applications. Because of the parametric approach you need to set up, it will take time, and you might not achieve the surface you want.

Here are a few tools and techniques I recommend you use if you want to create a surface concept like Black Panther. I will divide it into these categories:

Curve Tools
Surface tools
Surface modifier tools

Curve tools

In Onshape and many Professional CAD software programs such as SolidWorks, Autodesk Inventor, Fusion 360, or even FreeCAD, curves are the most powerful tool for drawing surface boundaries.

With Onshape’s ability to create and manipulate 3D curves, you can create awesome, complex shapes. So here is the list of curve tools you can use in Onshape

Projected Curve

Projected Curve is one tool to combine 2 sketches or a projected sketch into a surface (or faces) as a result of a 3D curve

Composite curve

Composite curve is used to turn existing edges into one curve

Bridging Curve or 3D fit Spline

The 2 tools have quite the same use by creating 3d curve using points and vertices

Edit Curve

Edit Curve is most important if you need to adjust a 3D curve curvature. So, instead of keeping the curve that has been built from the previous tools, you can adjust it with Edit Curve.

Trim Curve

If you need a partial curve, you can Trim or Extend Curve at a point or mate connector boundaries.

2D Sketch

Lastly, 2D Sketch is still a powerful tool to set boundaries in the 2D plane. Therefore, we cannot ignore it.

Within those curve tools, you can create awesome surface boundaries.

Surface tools

Once you have all of your boundaries, you can create your Surface. In Onshape, you can create a surface from Open Boundaries and Closed Loop boundaries.

Let’s take a look at those tools one by one.

Open Boundaries

For Open Boundaries, all four (4) basic 3D tools can be used on it. With Open Boundaries, your surface result is very smooth but not very precise in terms of curvature matching.

Remember that in these tools, there is a “Surface” tab.

Extrude

In case you have a simple sketch, and your final result is a linear surface, the Extrude tool is the best fit for that. So do not seek any further; the simpler, the better

Revolve

In case of a half-circle surface or something that has a central axis revolution, just use revolve.

Sweep

If you have one sketch that goes around a path, use sweep to make everything simpler

Loft

This is the most powerful tool that is mostly used in Surfacing. You will use the tool to join 2 different curves or sketches. Loft can be used for both open boundaries and closed boundaries.

Ruled Surface

Ruled Surface is quite similar to Sweep, but it is more advanced.

Closed boundaries

For closed boundaries, you can create a more precise, smooth surface curvature because you can control all parameters within it.

Loft

As stated above, we can use the Loft feature in closed boundaries by using the closing boundaries as a guide and continuity. Besides, you can use an extra parameter as a path.

Fill

You cannot use fill with open boundaries. Fill only works on loop curves. Like Loft, you can control your fill curvature with a guide that intersects boundaries.

Boundary Surface

Boundary Surface is quite similar to Loft. Unlike Loft, you have to assign all curves and match them within U and V orientations

Surface Modifier tools

Once you have created your surface, you often need to tweak the existing surface in order to accomplish the design goal. So here are a few tools you mostly use to modify your surface:

Split

This is one of the most useful surface modifier tools, in order for you to split some surface and delete faces afterwards for some surface curvature change.

Delete Face

After splitting, we always delete the face parts for curvature change.

Offset Surface

This tools also is most common in case you need to bridge 2 offseted surface for some carve or emboss pattern with the same curvature flow for example

Move Boundary

You need to move boundaries (Trim or extend) in case you want to intersect them with other Surfaces for you to use tools like Mutual trim or simple trim

Mutual Trim

If you have two (2) surfaces that you want to trim and merge at the same time, this is the perfect tool.

Within those tools, you can create an awesome Surface concept such as a Helmet or Hero’s Masks like Black Panther Mask.

I designed this Black Panther Mask using almost all the tools I mentioned above. I generated the BluePrint of this one using Gemini.

You can download the BluePrint Here.

You can even expand your creativity by creating a Car surface bodies.

I guess this Post help you to choose the best tools for your design.

Let me know your thought about it.

See you soon

The Power of Surface Tools in Onshape – Black Panther Mask Read More »

SPHERE PATTERN – GOLF BALL IN ONSHAPE

MikaiaVal

Creating pattern around sphere, such as Golf Ball is quite challenging in CAD like Onshape, Fusion360 or Solidworks. Wrapping profile into 360 deg sphere is quite impossible. The profile will be distorted or it will be placed in wrong map.

If we refer to a sphere from meshed 3D application like Blender, By using triangle or quad polygon, We can see the best pattern distribution. And translating that into CAD needs an advanced maths, by creating a point center by mapping it into the sphere surface. Quite complex, but here are a few distribution list you can apply on a sphere

In Onshape, Default wrap feature is still limited on Cylinder and Cone. Wrapping profile on a sphere is still impossible, unless we created a Custom Feature Script.

So here are 2 Custom Feature Script that you can try if you want to wrap some basic profile (circle, hexagon, square, diamond) on a sphere that I called it Sphere Pattern, or if you want to create a golf ball design.

These scripts are not stable. You can custom and improved it. You can share your improved version with me as well.

Stay tuned, I will share to you an Advanced Wrap custom script soon.

https://youtu.be/6Gj9WQtNdkc

SPHERE PATTERN – GOLF BALL IN ONSHAPE Read More »

X-Plane 12, the best Flight simulation ever.

MikaiaVal

Flight Simulator is one of the famouse simulation games. I am a big fan of simulation games, such as driving simulations with Euro Truck or American Truck and flight simulations. I played the flight simulator for the first time in 2010, just for a few months. I stopped playing it because the game was quite heavy on the laptop I had at that time. It was hard to play the game using a keyboard and mouse. In a flight simulator, the landing is one of the most challenging phases.

16 years passed, and I just bought a used Logitech X3D Pro joystick. Therefore, as a flight simulation enthusiast, I got back into the game.

There are many flight simulation games available in the market. The one I am really interested in is X-Plane by Laminar. Here are the main reasons why I chose X-Plane:

Offline playing

I can play X-Plane offline as long as I download all the tools I need for the game, such as scenery and aircraft. You can add additional add-ons if necessary (aircraft tools, airport tools and services, etc.)

Free Demos

X-Plane offers free flight demos for all users to test the game before purchasing it. The free demo version allows users 15 minutes of use before the game becomes locked. Then, the flight will start again, and the 15 minutes will restart at the same time.

Affordable simulator game

Regarding the game itself, it’s quality; mainly, the game is very affordable. You can unlock almost everything for about $60. Then enjoy the game fully.

You can choose whether you want to play it on Steam, or you want a digital download. You can even buy a DVD copy of the game. I recommend this one if you live in the US or in Europe.

The purchase is straightforward. Once you make it, you will receive an email confirmation with an installation guide.

Once you install the full version of it, you unlock another scenery globally with more than 30k airports, additional aircraft, and some extra tools such as PMDG, “Flight Factor”,etc. Plus, your flight is not limited to the 15min anymore. You can fly for as long as you want with real-time weather.

In addition, you are part of the Laminar Research Family.

One challenge I faced when I installed X-Plane in it’s demos version is that my internet is very slow. My average download speed is about 300kb/s. Also, I cannot keep my Laptop on all days. I switch it every 12 hours due to my solar panel system as my power plan. So I need 2 days or so to download all 25Gb of x-plane data as a demo. The additional data, after you purchase it, is about 60Gb, including all scenery globally. Fortunately, you can download it one by one.

So how could I overcome that challenge?

When you run the X-Plane installation, a Windows pop-up appears to guide you through the installation steps.

As you see in the picture above, normally, you should wait until the download finished. The only available buttons are: cancel installation, buy X-Plane, and back. And the new X-Plane 12 installer does not even have a close button.

So here are the steps you should follow if you need to download the demo version in 2 days or more:

Run the X-Plane installer and follow the prompt. In your first installation, when you decide to stop and switch off your laptop and your internet, go to Task Manager and look at X-Plane 12 Installer Apps, then End task.

One thing you should do before you end the task, in case you are afraid of it, is copy everything that has been downloaded as a backup in a new folder. The default X-Plane folder is located in C:\X-Plane 12. So copy everything inside that folder as backup just in case.

To continue your installation and download, run the installer again and click on “update demo”. If you see that button Update Demo, it means that everything you downloaded the day before are not lost.

After that, pick the destination where you put the previous data that you downloaded.

Next, after checking the server, scanning existing files, and your disk space, the installer shows what is left to be downloaded.

Then you can run the installation until the end.

One thing I want to highlight is that: If you cannot download all data continuously, Never hit the “Cancel installation”. Once you hit it, all data will be erased and you will download everything from the beginning. I recommend you follow the steps above.

All in all, X-Plane is one of the great games for those who like flight simulation. However, if you are a fan of Flight Simulator, you can play it because it has very good and realistic scenery too. The reason I do not choose Flight Simulator is my internet connection limit. And if you want to test and try flight simulation for Free, you can try FlightGear. I even started with FlightGear before switching into X-Plane.

As part of Laminar Research Family, I can use my skills as CAD designer for the research by designing some basic scenery and advanced aircraft tools.

One of my next challenges is driving simulation once I have all the gear for it.

X-Plane 12, the best Flight simulation ever. Read More »

The Secret of Stunning Microphone Woven Wired Mesh Grid Design in CAD With 6 main steps

MikaiaVal

Have you ever noticed the detailed mesh grid on a microphone and wondered how it’s created? It’s not just a repeating pattern—it’s a result of smart engineering and advanced CAD skills. Making a realistic, interlocking mesh that fits smoothly over a sphere might seem difficult, but with the right steps in Onshape, it’s easier than you think and leads to impressive results.

This guide will walk you through the process of designing a complex, curved woven wire mesh—like the kind you see on professional microphones. Instead of a flat texture, we’ll show you how to replicate the smooth, natural curves found in real products. You’ll learn each step in a clear, easy-to-follow way, focusing on surface modeling and 3D splines.

The secret to this complex geometry lies in a sophisticated interplay of surface splitting, 3D splines, and a specialized sweep feature. This process allows us to generate intricate, interlocking wave curves that precisely map onto a curved surface, which are then transformed into robust wires. It might sound complex, but by the end of this tutorial, you’ll have the knowledge to execute this masterful design.

The Foundation: Building The Base Surface Shape

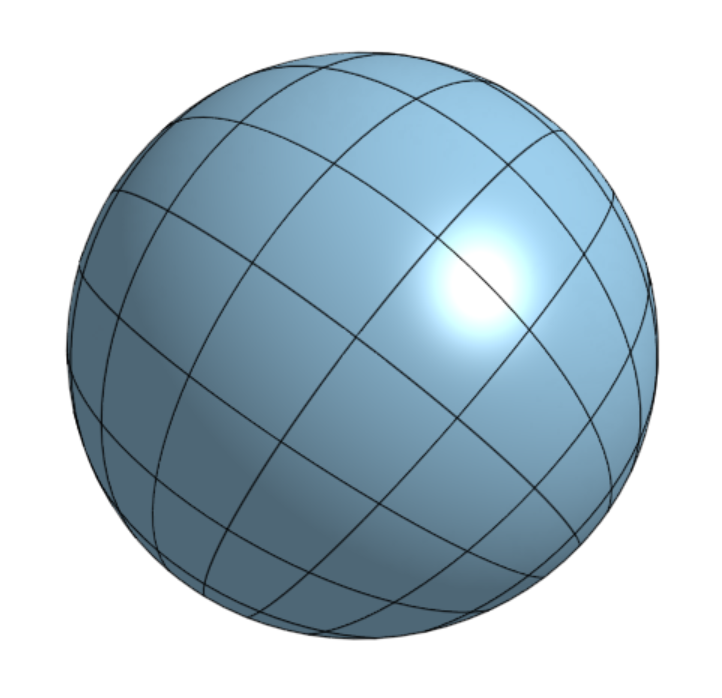

In this guide, we will use the sphere surface as an example. That’s the base surface we are working on. Do not worry, all steps apart from the base shape example are valid for the other shapes that we most often see on a microphone head.

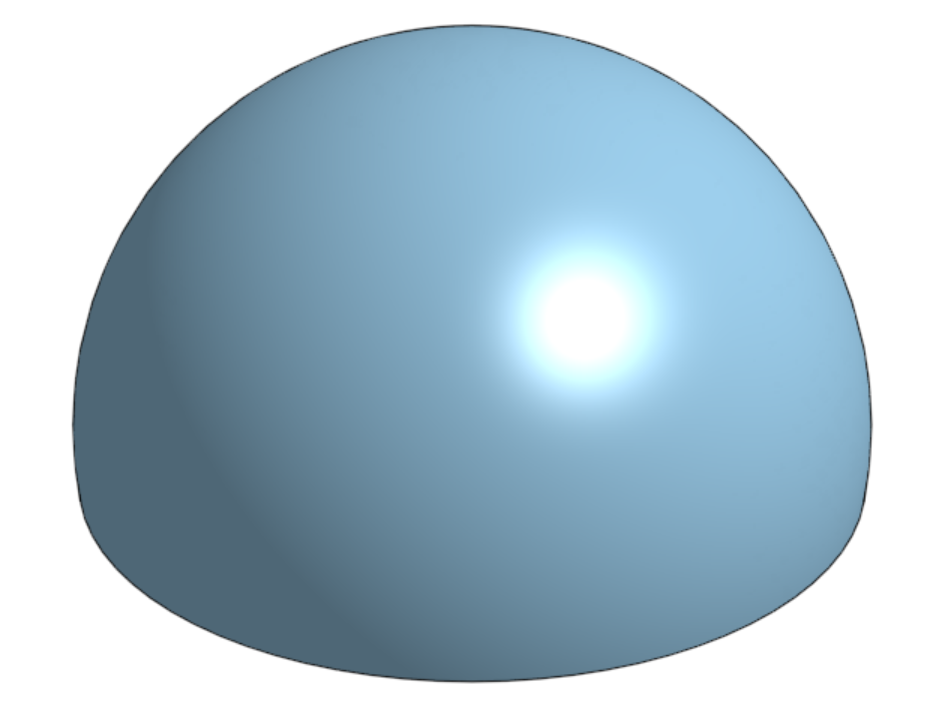

Design half of the sphere: Begin by selecting a Plane (front plane or right plane is OK) in Onshape. This is your primary sketching environment. Think of it as looking straight at the microphone head you intend to design.

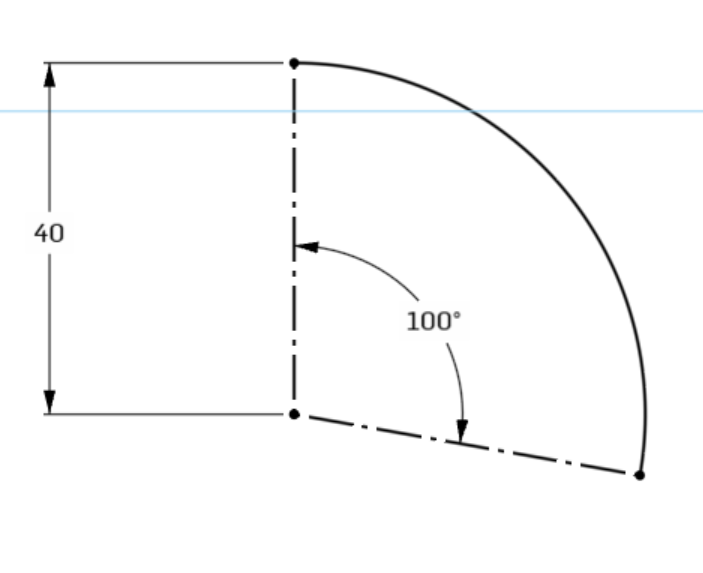

Sketching the Profile: On this plane, draw 2 lines and turn them into construction lines. Then use 3-Point-Arc and draw an arc from the End of the 2 lines you drew. Set the dimension of the line. In my case, I chose 40mm as a radius. But most of the microphone Head is about 45mm in Diameter.

The Revolve Feature: Once your sketch is complete, use Revolve/Surface. Select your sketched profile and an axis (typically the central axis of your sketch). Onshape will then spin your 2D profile around that axis, generating a perfectly smooth, 3D spherical surface. This surface is the very foundation upon which our intricate mesh will be built.

Crucial step: Patterning the Mesh Guides

Now that we have our spherical base, the next step is to define the initial guides that will help us segment this surface. These guides are crucial for establishing the underlying structure of our woven pattern.

Guide sketch: Switch your view back to the Front Plane (or Right Plane). This is where we’ll sketch the lines that will dictate the first stage of our mesh pattern.

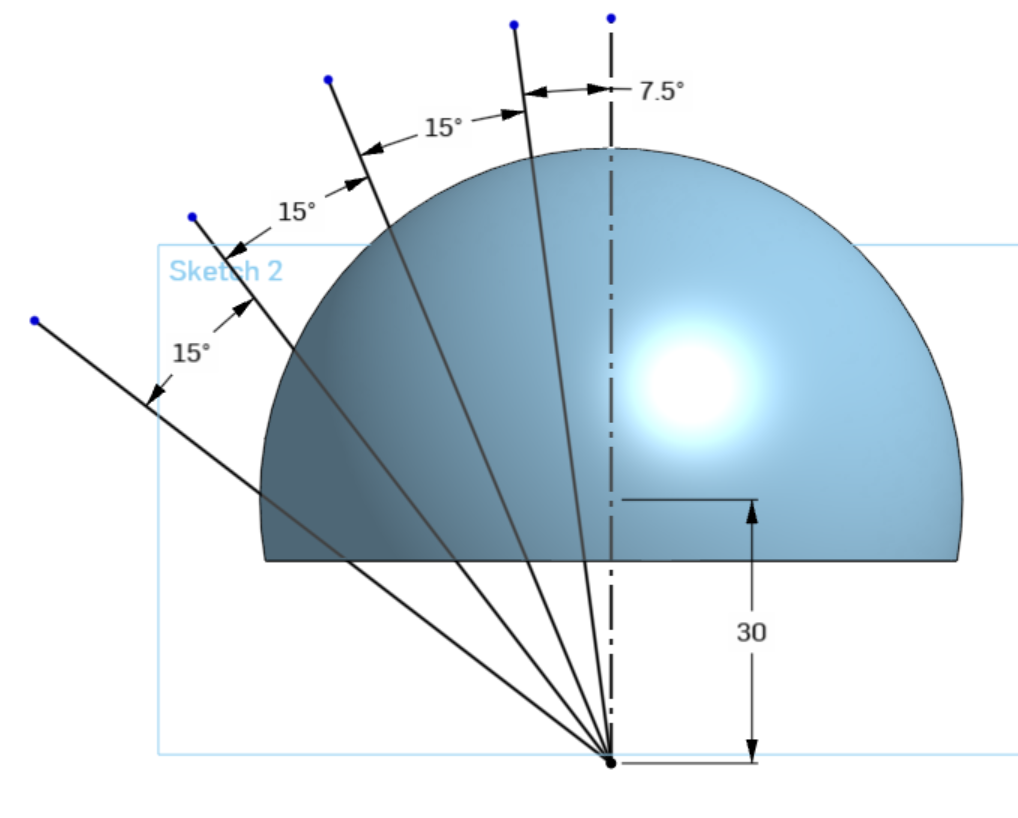

Drawing the Radii: Draw a line that passes through the origin and passes through the Sphere’s surface. Turn that line into a construction line. Add a Dimension between the end of the line and the origin as an offset dimension. You can experiment with that Dimension. In my case, I chose 30mm.
Create Angular lines Patterns: Create lines that we need for the guides. Use the bottom End of the 1st line we drew as the angular origin. Drew lines that fit the base surface. In this Example, I chose 4 lines. Then set the angle. So the angle between the construction line and the 2nd line, in my case, is 7.5 degrees. And between the 2nd line and the 3rd line is 15 degrees. And the rest will be this 15 degrees.

Extruding the Guides: After that, Extrude/surface those lines. Make sure that the Extrude Distance you set covers your base surface. Do not forget to check the “symmetry” option when extruding.

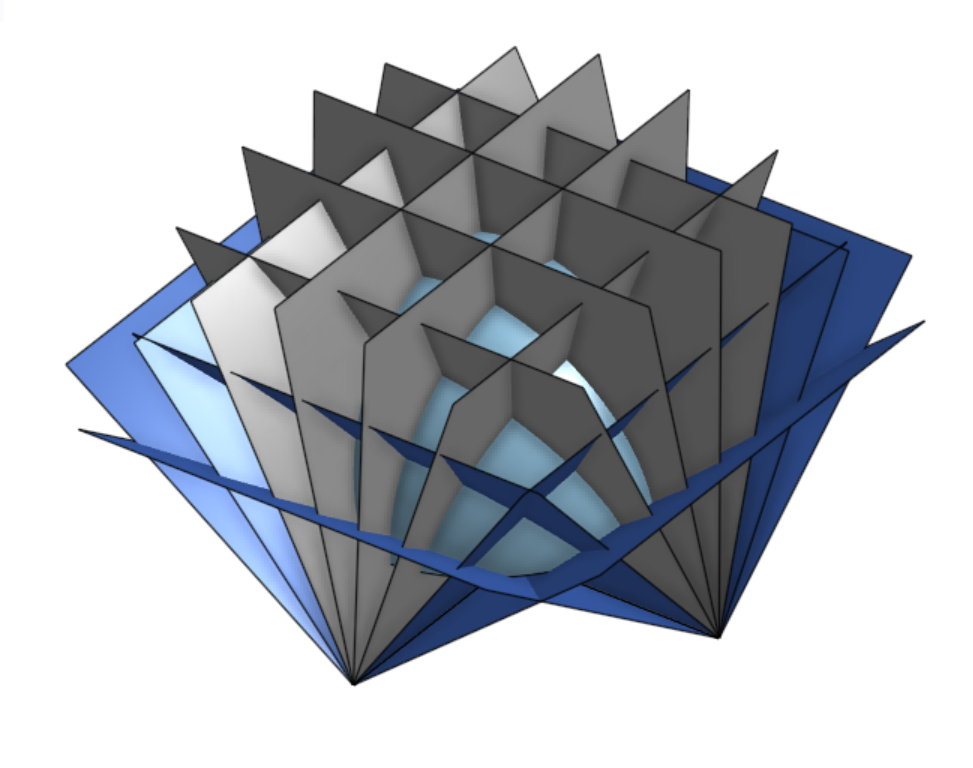

Custom Checker Pattern Guide

This is where our flat 2D guides begin to transform into dynamic 3D elements that conform to our spherical shape. Surface splitting is a powerful tool that allows us to carve our base surface using other geometric entities.

Circular Pattern: Pattern the Extruded lines we created in the previous step. Use a Circular pattern, and pattern bodies 4 times.

Create a Custom Checker Pattern Guide: After patterning, click on the Split commands and choose the Face tab. Choose the sphere as the Face to split with, and choose the other surfaces as the entities to split with. Uncheck “the keep tools” because we do not need the tool anymore.

Refining the Canvas: Preparation and Offset

Before we can start drawing our intricate 3D wave curves, we need to refine our split surface and create the necessary space for the “weaving” effect. This involves a bit of strategic cleanup and duplication.

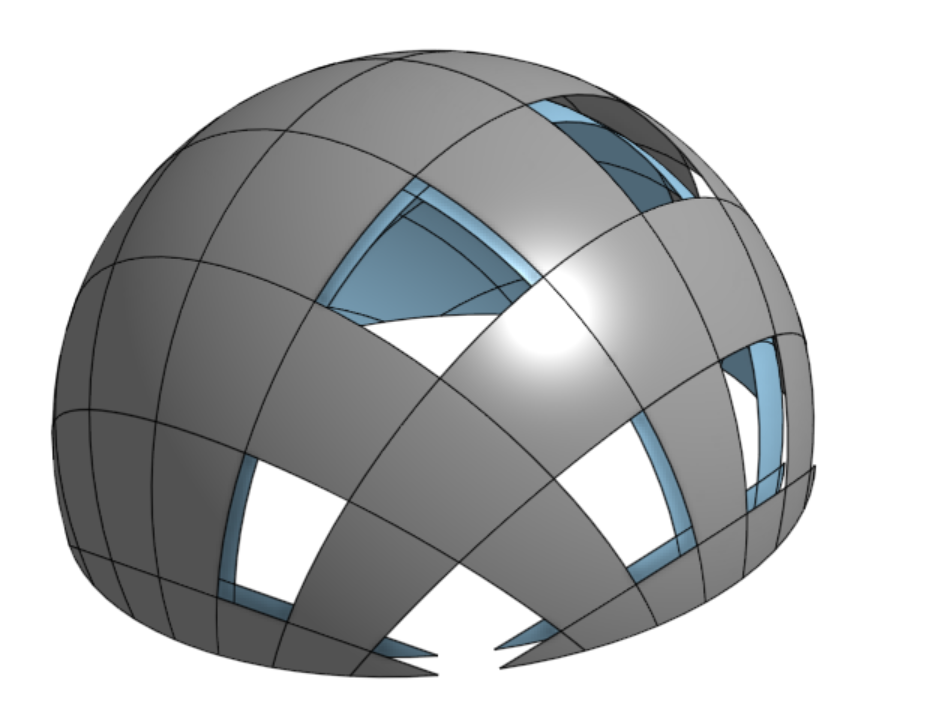

Strategic Face Deletion: This step might seem counterintuitive, but it’s essential for simplifying the design process. You’ll need to delete faces from your newly split spherical surface. This focus allows for clearer visualization as you construct the intricate spline paths. Delete faces like checkers. Keep the center faces, but delete the rows next to them. It will help you with the pattern in the last step. And only delete faces on the half of the sphere.
Offsetting the Surface: Now, select the entire remaining surface (not just a single face) and use the Offset feature. This creates a parallel duplicate of your surface, positioned at a specific distance from the original.

The Heart of the Mesh: Crafting Interlocking Wave Curves

This is arguably the most artistic and critical step in the entire process. Here, we’ll use 3D splines to draw the paths that our wires will follow, creating that characteristic woven look. The key is careful point placement and alternating between your two offset surfaces.

Initiating the First Wave: Activate the 3D Spline tool. This allows you to draw curves directly in 3D space, unbound by a single sketch plane.
Alternating Points – The Weaving Secret: The magic happens by strategically placing the spline points. You can check here for more explanation
- For your very first point, start on the offsetted surface.
- For the second point, switch and place it on the original surface.
- Continue this pattern: the third point goes back to the offsetted surface, the fourth to the original, and so on. This continuous alternation between the two surfaces is what generates the natural “over and under” effect of a woven mesh.
- Pro-Tip: Pay close attention to the visual cues provided by your split surfaces. The grid lines created by the initial splitting will serve as excellent guides for where to place your spline points, ensuring a uniform and aesthetically pleasing pattern.
The Next Wave – Opposite Start: When you begin drawing your next wave curve, it’s crucial to start on the opposite surface from where your previous curve began. If your first curve started on the offset surface, your second curve must begin on the original surface. This ensures that the two curves interlock correctly, creating that authentic woven appearance.
Repeating the Pattern: Continue creating all the necessary wave curves for one segment of your mesh. Remember to alternate the starting surface for each new line to maintain the interlocking pattern. This meticulous process builds the core weaving structure.

Bringing it to Life: Wires and Final Pattern

With all your intricate 3D spline curves in place, the final steps involve transforming these abstract lines into tangible wires and then replicating them across the entire sphere to form the complete mesh.

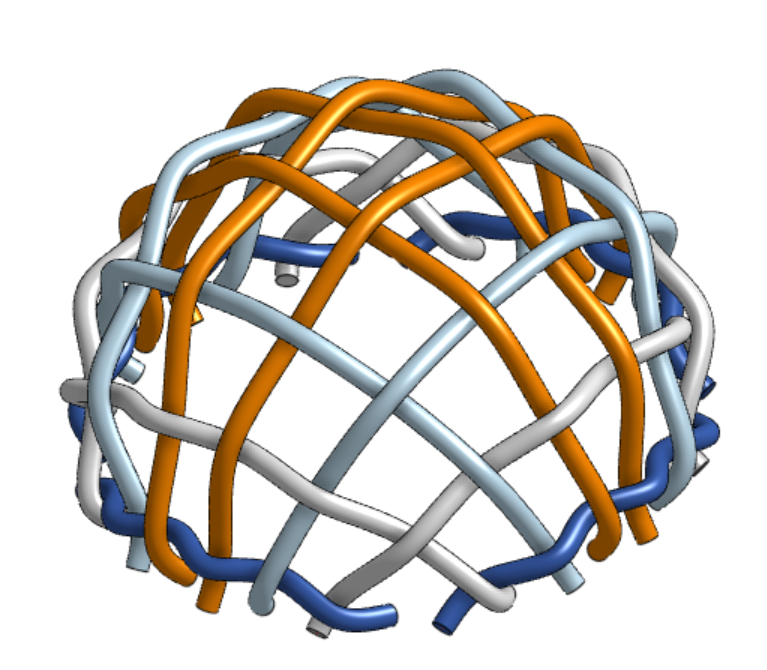

The “Circle Sweep” Feature Script: This is where Onshape’s flexibility truly shines. Instead of using the standard, more manual Sweep feature, leverage a custom Feature Script. We recommend searching the Onshape App Store or community forums for a tool like “Circle Sweep”. This script is a game-changer because it allows you to quickly generate a uniform, round 3D wire body along your selected spline curves with minimal effort. This significantly speeds up the process compared to sketching a circular profile and sweeping it manually for each curve.

Applying to All Curves: Apply the Circle Sweep feature to every single one of the wave curves you meticulously created. Watch as your delicate 3D splines instantly transform into robust, metallic wires, forming the initial woven segment of your microphone mesh.
The Grand Finale: Circular Pattern: With your primary wire segment complete, the very last step is to perform a final Circular Pattern on all the wire bodies you’ve just created. Select all the individual wire components, choose your central axis, and define the number of instances needed to fully encircle your spherical base. Onshape will then replicate your woven segment, completing the full, stunning microphone mesh grid.

Beyond the Mesh: Your Design Journey Continues

And there you have it! A comprehensive breakdown of how to design a highly detailed, realistic woven wire mesh on a non-planar surface using advanced Onshape techniques. This method transcends basic patterning, allowing you to create designs that truly mimic the organic, complex nature of real-world objects like microphone grids.

This Technics can be used with other CAD software such as Solidworks, Fusion360

What complex geometric challenge will you tackle next?

If you need a clear explanation video, Watch here 👇
